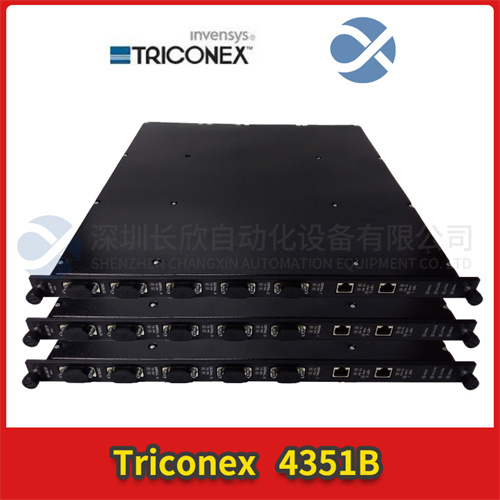

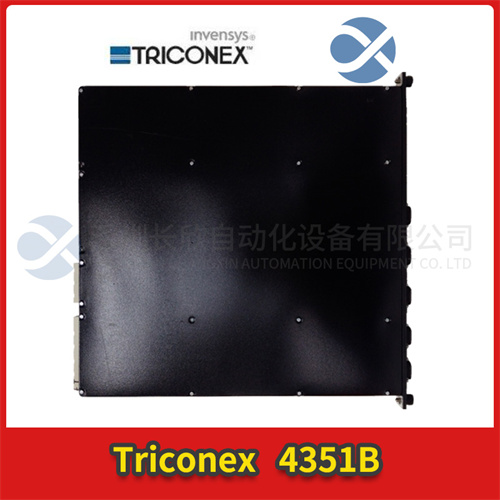

1. Parameter Specifications

• Power Supply: The TRICONEX 4351B typically operates on a 24V DC power supply. It has a power consumption of around 20 - 30W, which is designed to ensure stable operation within industrial power environments.
• Input/Output Configuration:
• Digital Inputs: It is equipped with 32 digital inputs. These inputs are capable of receiving signals from a wide range of digital sensors, such as proximity sensors and limit switches. The input voltage range is 5 - 24V DC.
• Digital Outputs: There are 16 digital outputs. Each output can drive a load with a maximum current of 2A, suitable for controlling high - power devices like contactors and solenoid valves.
• Analog Inputs: There are 8 analog inputs. They can accept signals in the ranges of 0 - 10V or 4 - 20mA, with a 16 - bit resolution for highly accurate measurement of physical quantities such as temperature, pressure, and flow.
• Analog Outputs: 4 analog outputs are available, capable of outputting signals in the same ranges as the analog inputs for precise analog control.
• Communication Interface: It supports redundant Ethernet interfaces for high - speed data transfer and system integration. It also uses the Tricon communication protocol, which enables seamless communication with other Triconex modules and control systems.

2. Applications

• Safety - Critical Industrial Processes: The TRICONEX 4351B is widely used in safety - critical applications in industries such as oil and gas, petrochemical, and power generation. It can be used for emergency shutdown systems (ESD), burner management systems (BMS), and turbine control systems.
• Process Control and Monitoring: In industrial manufacturing, it can be employed to monitor and control complex production processes. It ensures that the process parameters are within the safe and optimal range, and can take immediate action in case of abnormal conditions.

3. Weight and Dimensions

• Weight: The unit weighs approximately 2 kg, which is relatively lightweight considering its high - performance capabilities.
• Dimensions: The overall dimensions are: length - 250mm, width - 180mm, height - 80mm. Its compact size allows for easy installation in standard industrial control cabinets.

4. Features

• Triple Modular Redundancy (TMR): The 4351B uses TMR architecture, which means it has three independent channels for processing and voting. This significantly enhances the system's reliability and fault - tolerance. In case of a single - channel failure, the system can still operate normally based on the majority vote of the remaining two channels.
• High - Speed Processing: It is equipped with a high - performance processor that can handle complex algorithms and large amounts of data in real - time, ensuring rapid response to process changes and safety events.
• Diagnostic Capabilities: The module has comprehensive self - diagnostic capabilities. It can continuously monitor its own operation and detect faults at an early stage, providing detailed diagnostic information for maintenance and troubleshooting.

5. Stability and Reliability

• Robust Design: The device is housed in a rugged metal enclosure that provides excellent protection against dust, moisture, and mechanical vibrations. It can operate stably in harsh industrial environments.
• Redundancy and Fault - Tolerance: As mentioned, the TMR architecture provides built - in redundancy. Additionally, the power supplies and communication interfaces are also redundant, ensuring continuous operation even in the event of component failures.
• Quality Assurance: Triconex is a well - known brand with strict quality control during the manufacturing process. The 4351B undergoes rigorous testing to ensure long - term reliability and performance.

6. Real - world Examples

• Oil Refinery: In an oil refinery, the TRICONEX 4351B is used in the ESD system. It continuously monitors various process parameters such as pressure, temperature, and flow in the refining units. When an abnormal condition is detected, such as a sudden increase in pressure, it can quickly trigger the shutdown sequence to prevent potential disasters.
• Power Plant: In a power plant, it is applied in the turbine control system. It monitors the turbine's speed, vibration, and other parameters in real - time. If there is a deviation from the normal operating range, it can adjust the control signals to maintain the turbine's stable operation and prevent damage to the equipment.
