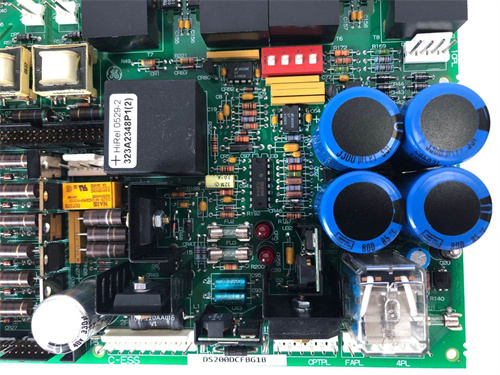

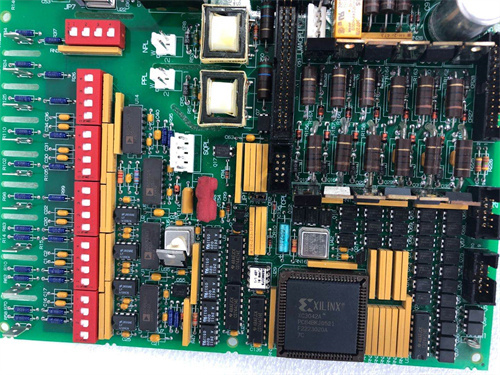

The DS200DCFBG1BGB is a critical component in the realm of industrial automation, specifically designed as a digital control feedback board. It plays a pivotal role in systems that require precise control and monitoring of various processes, such as those in power generation, chemical manufacturing, and other heavy - industrial sectors.
This board is engineered to receive feedback signals from different sensors and actuators within an industrial system. It then processes these signals and communicates relevant data to the central control unit. Based on the received data, the control unit can make informed decisions and send out appropriate control commands to ensure the smooth and efficient operation of the entire industrial process.
| Parameter | Details |
|---|
| Power Supply | 24 VDC (±10%) |
| Power Consumption | Up to 8 W |
| Input Channels | 16 digital input channels, capable of handling a wide range of signal levels (e.g., 5 - 24 VDC) |
| Output Channels | 8 digital output channels, with a rated output current of 1 A per channel |
| Communication Interface | RS - 485 for serial communication; supports Modbus RTU protocol for seamless integration with other devices in the network |
| Data Transfer Rate | Up to 115.2 kbps over the RS - 485 interface |
| Operating Temperature | - 40°C to 70°C |
| Humidity Range | 5% - 95% non - condensing |
| Dimensions | 180 mm x 120 mm x 30 mm |
| Weight | Approximately 0.5 kg |
- High - Precision Signal Processing: The DS200DCFBG1BGB is equipped with advanced signal - processing algorithms that can accurately interpret the feedback signals. For example, in a power turbine control system, it can precisely measure the rotational speed and other parameters, enabling the control system to adjust the turbine's operation in real - time to optimize power output.
- Reliability: Built with high - quality components, this board is highly resistant to environmental factors such as temperature variations, humidity, and electrical interference. In a harsh chemical plant environment, it can continue to operate stably without significant signal degradation, ensuring continuous and reliable process control.
- Ease of Integration: Thanks to its support for the widely - used Modbus RTU protocol, the DS200DCFBG1BGB can be easily integrated into existing industrial control networks. This simplifies the upgrade process for industrial systems, allowing companies to enhance their control capabilities without major overhauls.
- Power Generation: In thermal power plants, the DS200DCFBG1BGB is used to monitor and control the operation of boilers, turbines, and generators. It can receive feedback on parameters such as steam pressure, temperature, and generator output, and then adjust the control settings accordingly. For instance, if the steam pressure in the boiler exceeds the set limit, the board can send a signal to the control system to reduce the fuel supply.
- Chemical Industry: In chemical manufacturing processes, this board is employed to control the flow of raw materials, reaction temperatures, and pressures. For example, in a chemical reactor, it can monitor the level of reactants and the progress of the chemical reaction. Based on the feedback, it can adjust the flow rate of the feedstock and the cooling or heating systems to ensure the reaction proceeds as planned.
- Usage Example: In a large - scale water treatment plant, the DS200DCFBG1BGB was installed to control the operation of pumps and valves. By monitoring the water level in the tanks and the flow rate in the pipes, the board could precisely control when the pumps should start or stop and how the valves should be adjusted. As a result, the plant was able to reduce energy consumption by 15% and improve the overall efficiency of the water treatment process.
Compared to other similar digital control feedback boards on the market, the DS200DCFBG1BGB offers several advantages. Some competing products may have lower input/output channel counts, which limits their flexibility in handling complex industrial processes. Additionally, the DS200DCFBG1BGB's wide operating temperature range and high - precision signal processing capabilities make it more suitable for use in extreme industrial environments. Moreover, its support for the Modbus RTU protocol provides better compatibility with existing industrial systems, reducing the integration costs for end - users.
- Performance Requirements: Evaluate whether the DS200DCFBG1BGB meets the performance requirements of your project. Consider factors such as the number of input/output channels, the data transfer rate, and the signal - processing precision.
- Compatibility: Ensure that the board is compatible with your existing industrial control system. Check the communication protocol, power supply requirements, and physical dimensions.
- Budget: Consider the cost of the DS200DCFBG1BGB in the context of your budget. Also, take into account the long - term costs, including maintenance, software updates, and potential replacement parts.
- Installation: Follow the manufacturer's instructions carefully during installation. Make sure the board is properly mounted and all electrical connections are secure. Pay attention to proper grounding to prevent electrical interference.
- Safety: Before performing any maintenance or repair work on the board, turn off the power supply. Avoid exposing the board to moisture, dust, and mechanical damage.
- Technical Maintenance: Regularly inspect the DS200DCFBG1BGB for any signs of wear or damage. Clean the board to remove dust and debris. Follow the manufacturer's recommendations for firmware updates and component replacements.
